Product Details

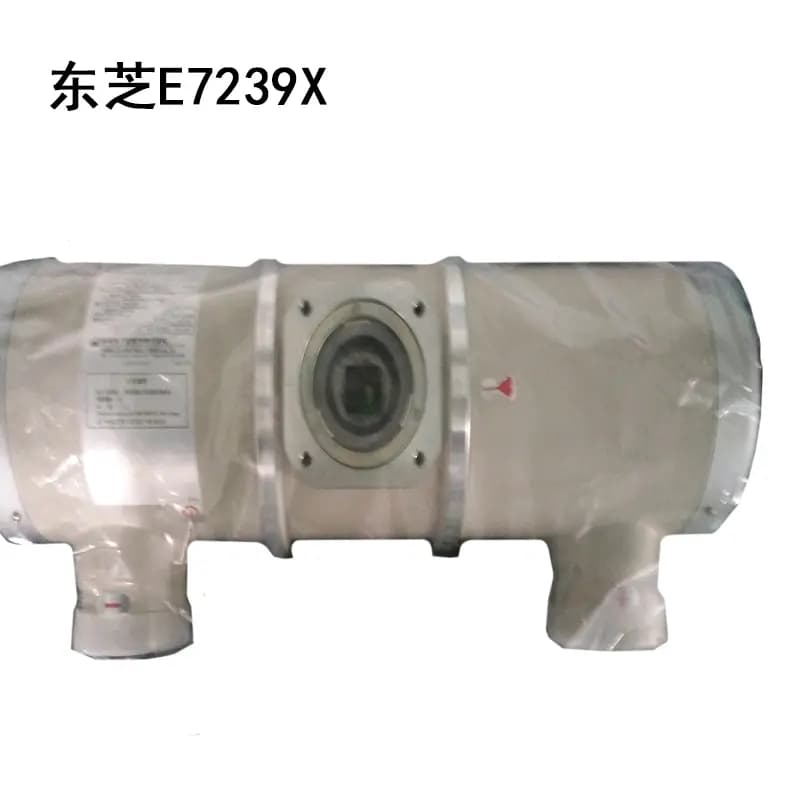

Product Name: Canon (Former Toshiba) E7239X X-ray Tube Product Type: 3-inch Rotating Anode X-ray Tube Assembly Manufacturer: Canon Electron Tubes & Devices Co., Ltd. Model Specification: E7239X Specifications & Parameters: Focal Spot Size: Large 2.0 mm / Small 1.0 mm Max Tube Voltage: 125 kV (Radiography), 100 kV (Fluoroscopy) Short-term Power (0.1s rating): 60Hz mains: Large focus 47 kW, Small focus 22.5 kW 50Hz mains: Large focus 42.5 kW, Small focus 21 kW Anode: 74 mm molybdenum substrate with rhenium-tungsten target, crack-resistant surface Target Angle: 16° Overall Dimension: Length 479 mm, Max Diameter 152.4 mm Anode Rotation Speed: 2700 r/min (50Hz), 3200 r/min (60Hz) High Voltage Connector: IEC60526 standard receptacles Application: Fixed DR systems, General radiographic X-ray equipment
