Product Details

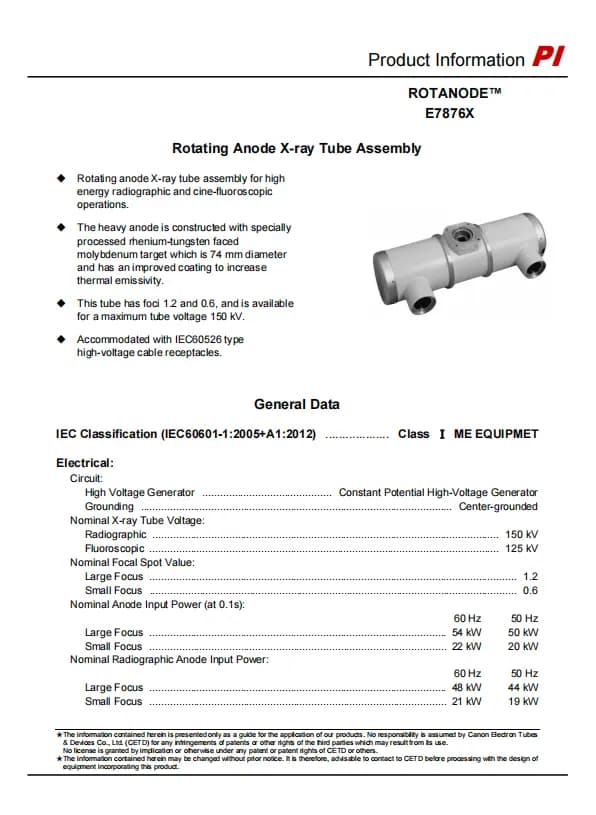

Product Name: Canon (Former Toshiba) E7876X X-ray Tube Product Type: 3-inch Rotating Anode X-ray Tube Assembly Manufacturer: Canon Electron Tubes & Devices Co., Ltd. Model Specification: E7876X Specifications & Parameters: Large / Small Focal Spot Size: 1.2 mm / 0.6 mm Maximum Tube Voltage: 150 kV (Radiography), 125 kV (Fluoroscopy) Short-term Power Rating (0.1s) 60Hz mains: Large focus 54 kW, Small focus 22 kW 50Hz mains: Large focus 50 kW, Small focus 20 kW Target Angle: 12° Anode Heat Capacity: 230 kHU Anode Construction: 74 mm molybdenum substrate with crack-resistant rhenium-tungsten target Anode Rotation Speed: 2700 r/min (50Hz), 3200 r/min (60Hz) High Voltage Connector: IEC60526 standard receptacles Application: Fixed DR systems, High-frequency radiographic X-ray equipment
