Product Details

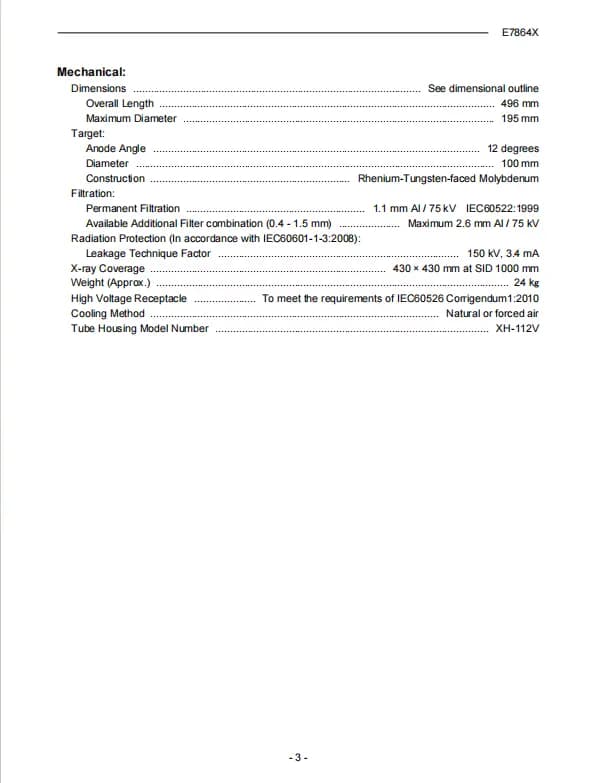

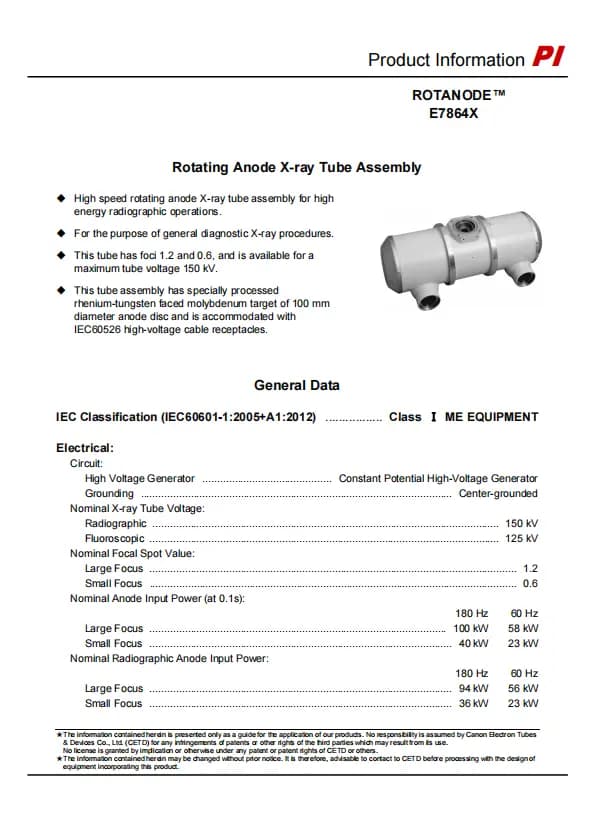

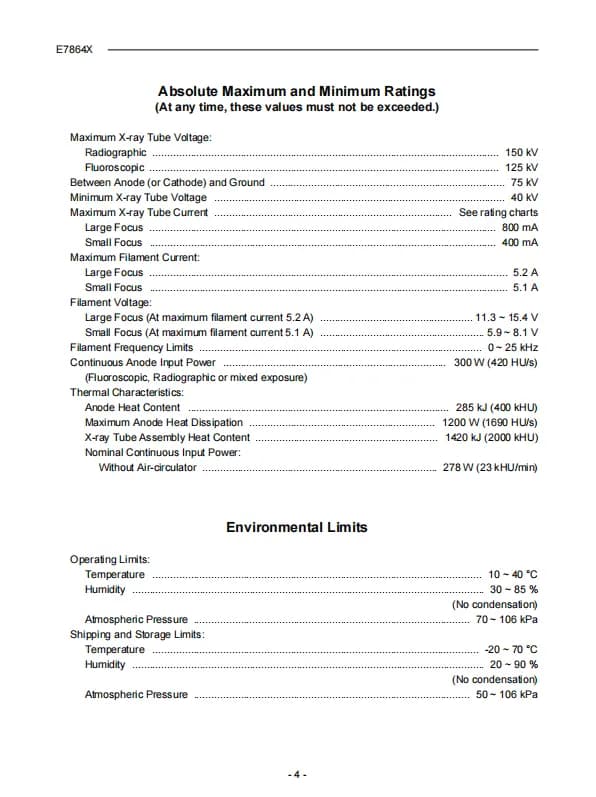

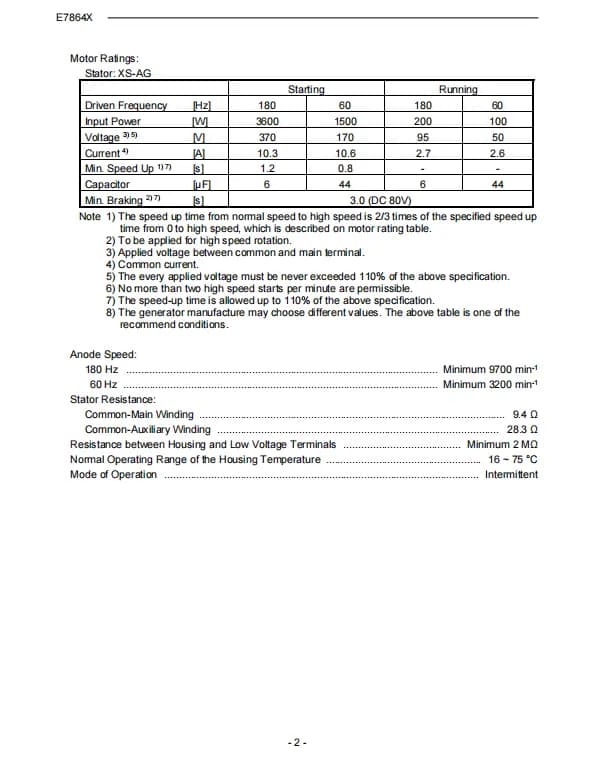

Product Name: Canon (Former Toshiba) E7864X X-ray Tube Product Type: 4-inch Rotating Anode X-ray Tube Assembly (Radiography & Fluoroscopy) Manufacturer: Canon Electron Tubes & Devices Co., Ltd. Model Specification: E7864X Specifications & Parameters: Large / Small Focal Spot Size: 1.2 mm / 0.6 mm Maximum Tube Voltage: 150 kV Short-term Power Rating (0.1s) 50Hz mains drive: Large focus 51.7 kW, Small focus 21.1 kW 60Hz mains drive: Large focus 58 kW, Small focus 23 kW 180Hz high-speed drive: Large focus 100 kW, Small focus 40 kW Maximum Tube Current: 340/765 mA (50/60Hz); 400/800 mA (180Hz) Target Angle: 12° Anode Heat Capacity: 400 kHU (285 kJ) Anode Cooling Rate: 1200 kHU/min Anode Rotation Speed: 2700 r/min (50Hz), 3200 r/min (60Hz), 9700 r/min (180Hz high speed) Anode Construction: 74 mm molybdenum substrate with crack-resistant rhenium-tungsten target Matching Tube Housing: XH-112V High Voltage Receptacle: XS-AG (Compliant with IEC60526)
