Product Details

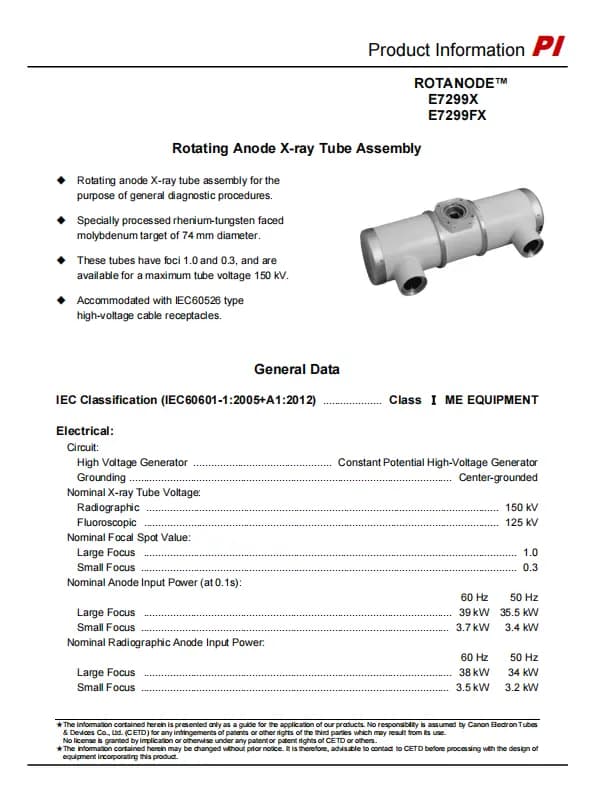

Product Name: Canon (Former Toshiba) E7299X X-ray Tube Product Type: 3-inch Rotating Anode X-ray Tube Assembly (For Precision Radiography) Manufacturer: Canon Electron Tubes & Devices Co., Ltd. Model Specification: E7299X Specifications & Parameters: Large / Small Focal Spot Size: 1.0 mm / 0.3 mm (Micro small focus for fine imaging) Maximum Tube Voltage: 150 kV Short-term Power Rating (0.1s exposure) 50Hz mains: Large focus 35.5 kW, Small focus 3.4 kW 60Hz mains: Large focus 39 kW, Small focus 3.7 kW Target Angle: 12° Anode Heat Capacity: 140 kHU Anode Construction: 74 mm molybdenum substrate with rhenium-tungsten target Anode Rotation Speed: 2700 r/min (50Hz), 3200 r/min (60Hz) Overall Dimension: Length 479 mm, Max Diameter 152.4 mm Inherent Filtration: 1.3 mm Al equivalent (at 75 kV) High Voltage Connector: IEC60526 standard receptacle Matching Housing: Standard FX housing
