Product Details

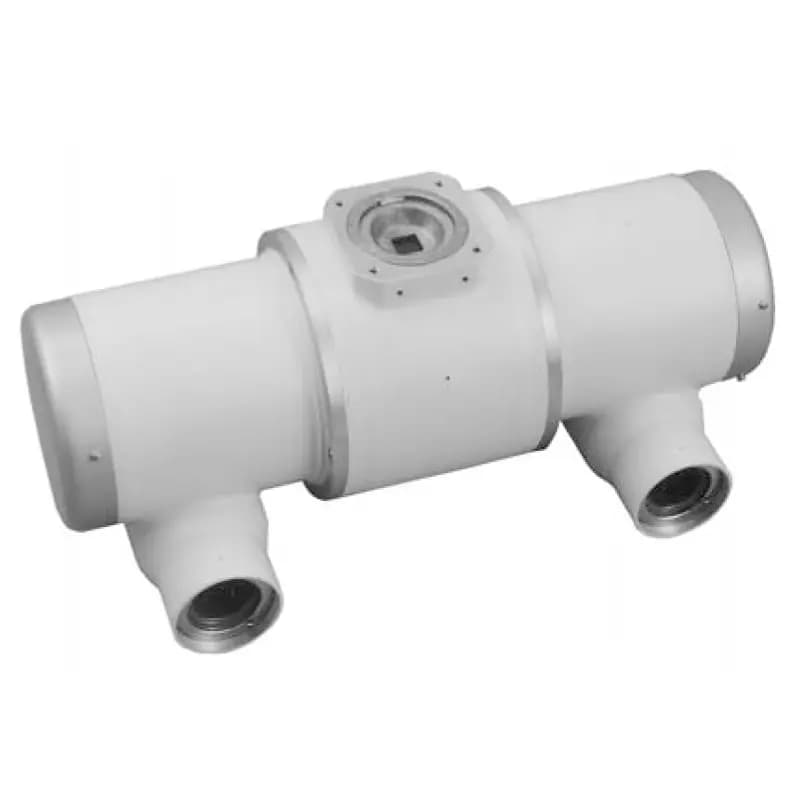

Product Name: Canon (Former Toshiba) E7254FX X-ray Tube Product Type: 4-inch High-Speed Rotating Anode X-ray Tube Assembly (Radiography & Fluoroscopy) Manufacturer: Canon Electron Tubes & Devices Co., Ltd. Model Specification: E7254FX Specifications & Parameters: Large / Small Focal Spot Size: 1.2 mm / 0.6 mm Max Tube Voltage: 150 kV (Radiography), 125 kV (Fluoroscopy) Short-term Power Rating (0.1s exposure) 50Hz mains: Large focus 55 kW, Small focus 21.5 kW 60Hz mains: Large focus 60 kW, Small focus 23 kW 180Hz high-speed rotation: Large focus 102 kW, Small focus 40 kW Maximum Tube Current: 400 mA / 800 mA (50/60Hz); 500 mA / 1000 mA (180Hz) Target Angle: 12° Anode Heat Capacity: 400 kHU (285 kJ) Anode Cooling Rate: 1180 kHU/min Anode Rotation Speed: 2700 r/min (50Hz), 3200 r/min (60Hz), 9700 r/min (180Hz) Anode Construction: 74 mm molybdenum substrate with high-emissivity rhenium-tungsten target Matching Tube Housing: XH-157 (FX variant with 90° cable bracket) High Voltage Receptacle: XS-RB (IEC60526 compliant) Cable Layout Feature: 90° lateral cable arm for compact equipment installation
